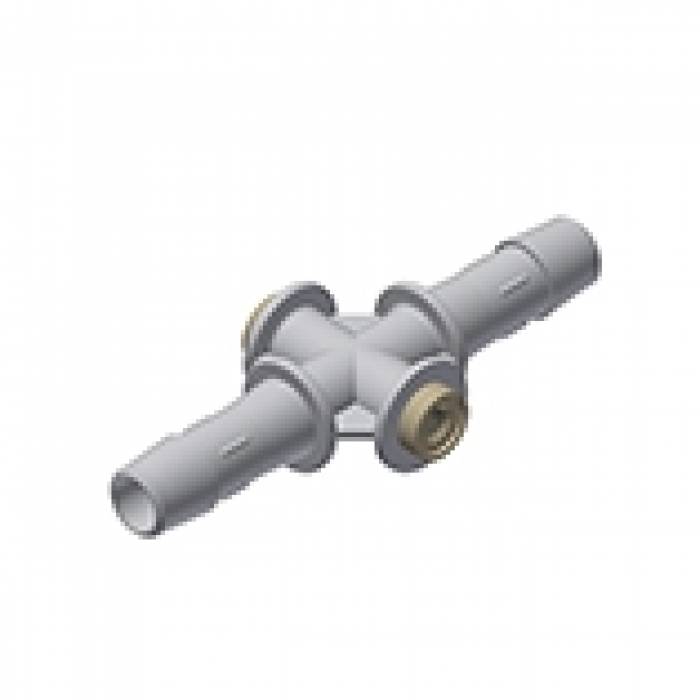

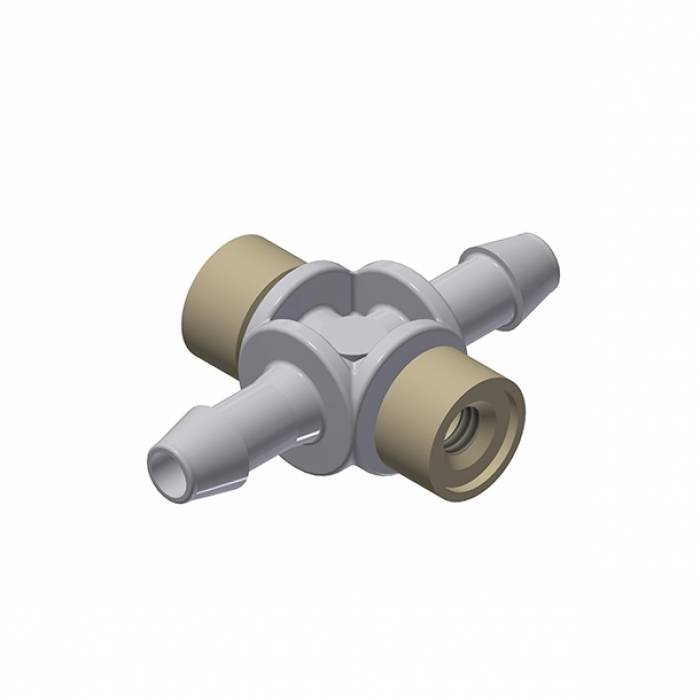

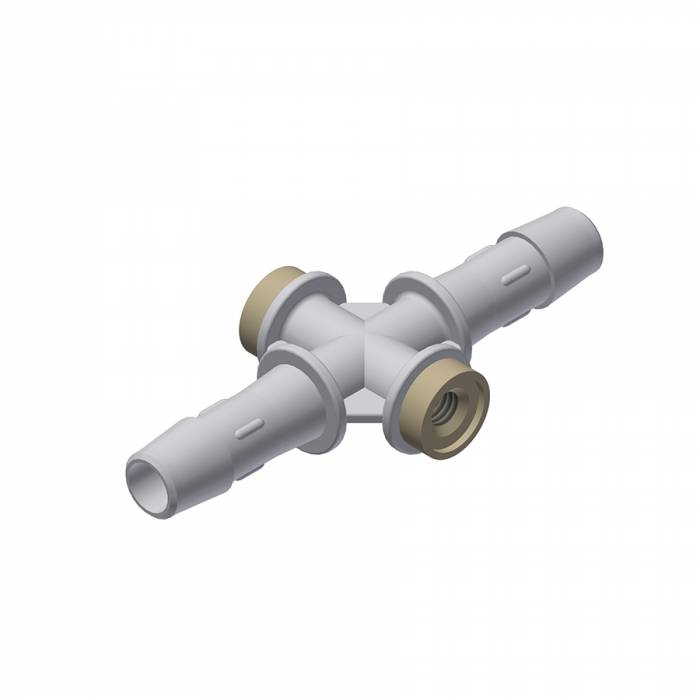

Single-use UV Flow Cells Barb connected Polypropylene

ECOM disposable UV flow cells with barbed connections are designed for analyzing and monitoring the absorbance  of liquids flowing through the cell; UV light is transmitted to and from the cell via optical cables with SMA 905 connectors from separate UV detector.

They were developed as a cost-effective solution for applications requiring the elimination of cross-contamination between different separation processes, or where cleaning and reusing cells is not feasible. The user can easily swap the cell in the holder after one or several uses.

Surface quality: The internal flow channel features a high-quality surface finish. The internal surface roughness is less than Ra 0.4, meeting requirements for various applications in the food and pharmaceutical industries. Materials in contact with the liquid include Ploypropylene, PEEK MT and a sapphire window.

Connections: ECOM disposable UV cells are designed for use with chromatography systems featuring 3/8″, ¼″, and ½″ hose connections.

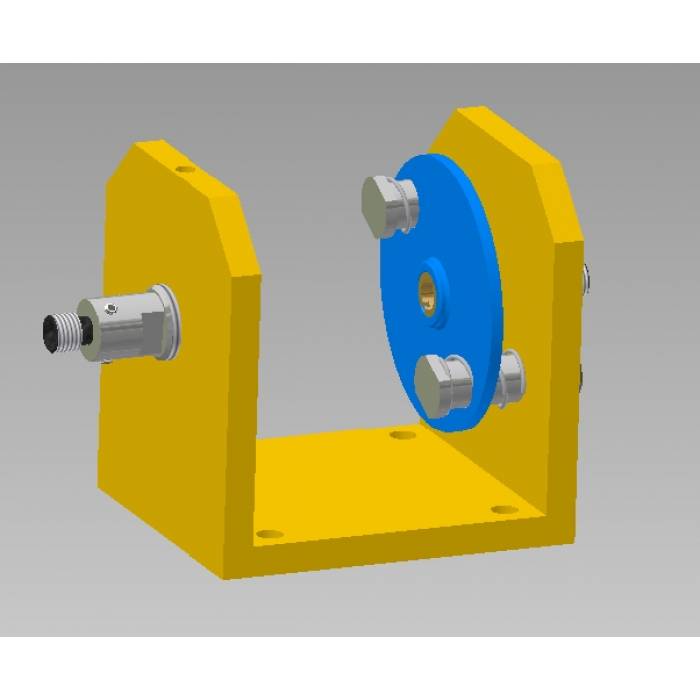

The ECOM CDUVSH00 holder (Holder for single-use Flow cell) is required to connect the flow cell. This holder is equipped with lenses that focus light into the flow cell; the light is delivered via fiber optics with SMA 905 connectors. (Ordered separately)

Features and Benefits•

• Cost-effective solution – replaceable single-use flow cells in a universal holder

• Elimination of dead volume

• Easy flushing with no risk of sample cross-contamination

• Compliance with USP Class VI requirements

• Resistance to corrosive substances • Compatibility with external ECOM detectors (TOY18DAD EX and VEX, TOY20DAD EX and VEX, ECD EX)

• Inspection certificate according to EN 3.1
