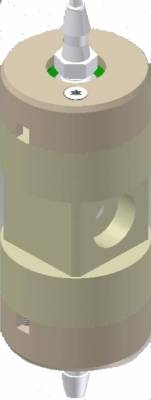

Single-use CDUV Flow Cells Barb connected
ECOM disposable combined CDUV flow cells with barbed connections offer a unique solution for the simultaneous measurement of conductivity and absorbance. The cells fit into a universal holder and can be easily replaced by the user after a single use or multiple uses.
Related variants

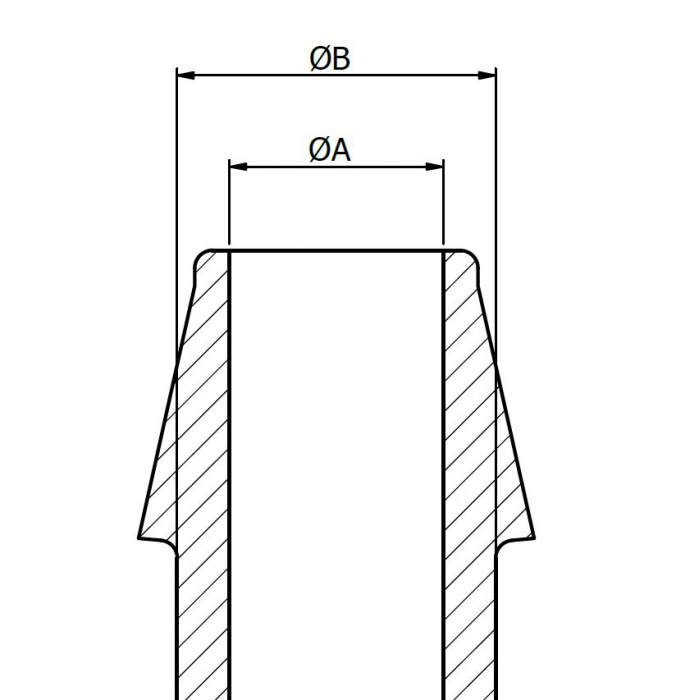

| Image | PN | Name | INCH | A (mm) | B (mm) | Request quote |
|---|---|---|---|---|---|---|
|
|
PN
CDUVS100
|
Name

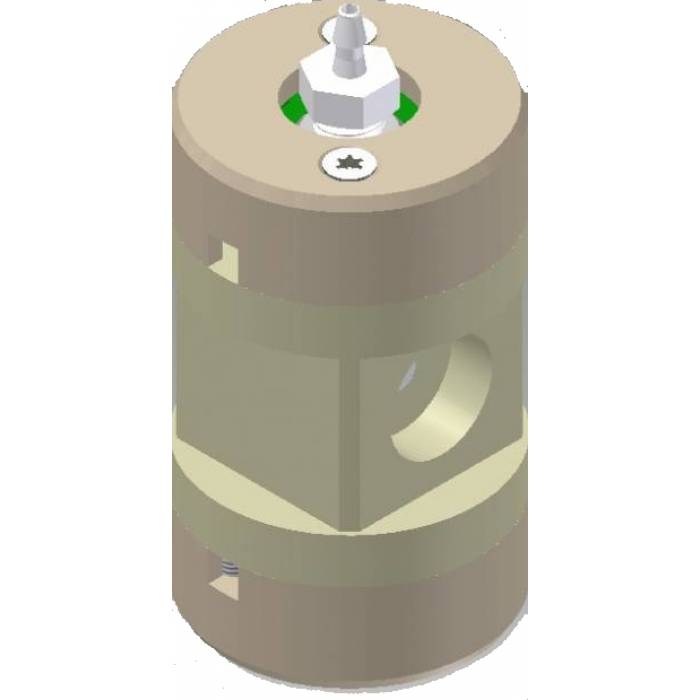

Single-use CDUV 1 Flow cell with a Barb connection for Tubing of ID1/16" OD1/8"
|
INCH
1/16
|
A (mm)
1.0
|
B (mm)
1.6
|
Actions
|
|
|
PN
CDUVS200
|
Name

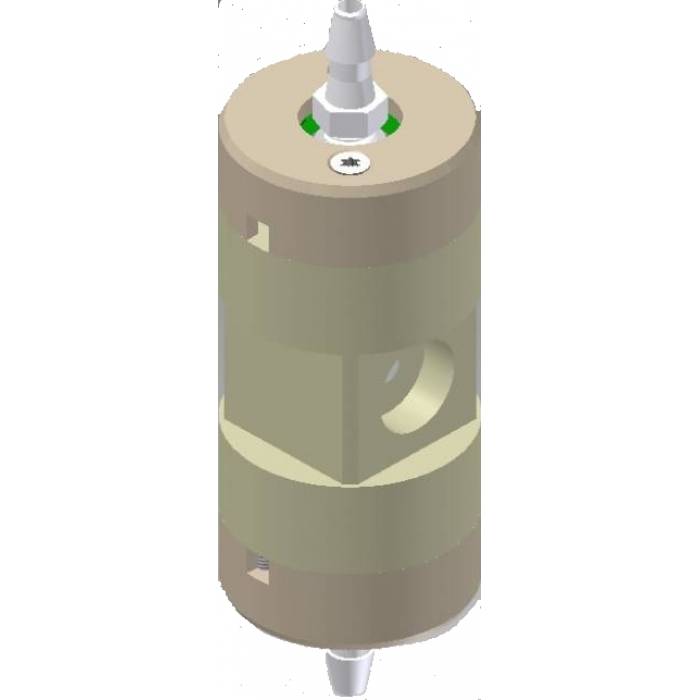

Single-use CDUV 2 Flow cell with a Barb connection for Tubing of ID1/8" OD3/16"
|
INCH
1/8
|
A (mm)
1..80
|
B (mm)
3.20
|
Actions
|
|
|
PN
CDUVS300
|
Name

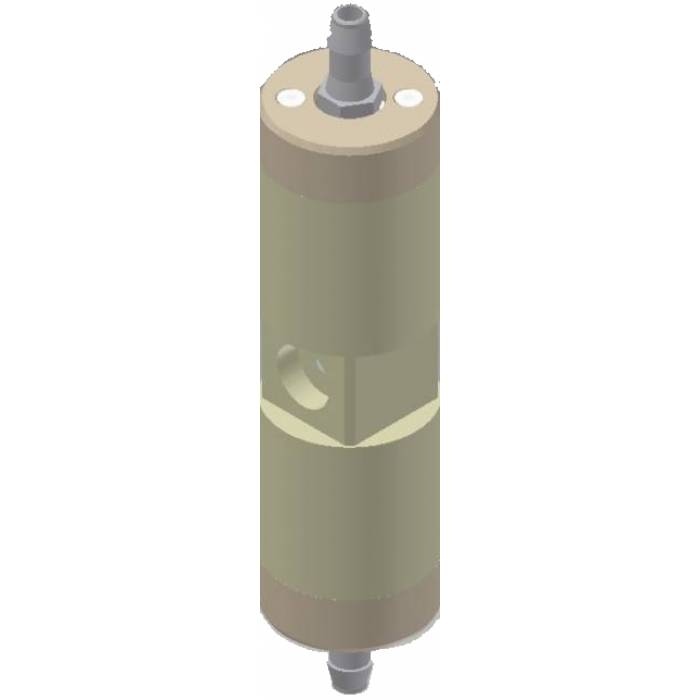

Single-use CDUV 3 Flow cell with a Barb connection for Tubing of ID3/16" OD1/4"
|
INCH
3/16
|
A (mm)
3.40
|
B (mm)
4.80
|
Actions
|
|
|
PN
CDUVSH00
|
Name
Holder for CDUV single-use cell with condensors for SMA connectors
|
INCH
-
|
A (mm)
-
|
B (mm)
-
|
Actions
|
|
|
PN
MV132A1A
|
Name
Board BEATRIX-22 rev.A1A
|
INCH
---
|
A (mm)
---
|
B (mm)
---
|
Actions
|
- Description
- Parameters
ECOM disposable CDUV flow cells with barbed connections are designed for analyzing and monitoring the absorbance and conductivity of liquids flowing through the cell; UV light is transmitted to and from the cell via optical cables with SMA 905 connectors from separate UV detector.
They were developed as a cost-effective solution for applications requiring the elimination of cross-contamination between different separation processes, or where cleaning and reusing cells is not feasible. The user can easily swap the cell in the holder after one or several uses.
Surface quality: The internal flow channel features a high-quality surface finish. The internal surface roughness is less than Ra 0.4, meeting requirements for various applications in the food and pharmaceutical industries.
Materials in contact with the liquid include PEEK MT, 316L stainless steel, and a sapphire window.
Connections: ECOM disposable CDUV cells are designed for use with chromatography systems featuring 3/8″, ¼″, and ½″ hose connections. The signal from the electrodes and the temperature sensor is transmitted via a three-core cable to a printed circuit board that evaluates conductivity.

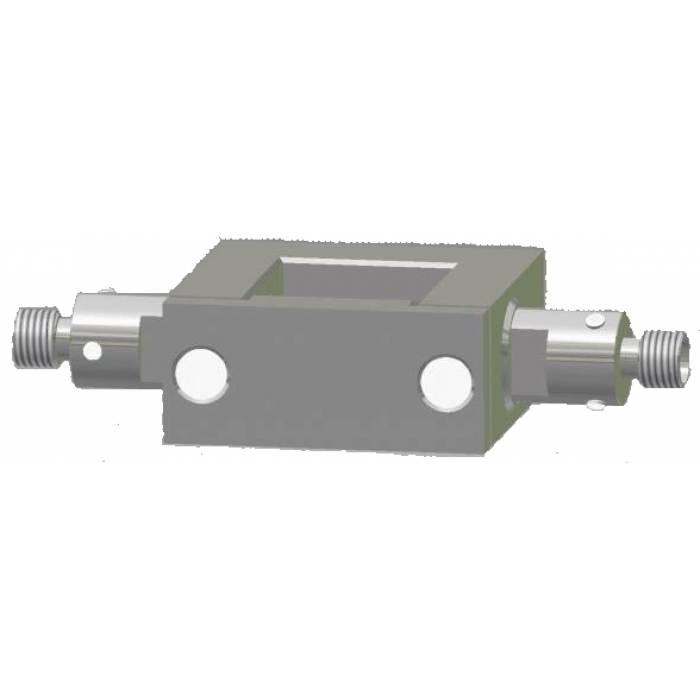

The ECOM CDUVSH00 holder (Holder for single-use Flow cell) is required to connect the flow cell. This holder is equipped with lenses that focus light into the flow cell; the light is delivered via fiber optics with SMA 905 connectors. (Ordered separately)

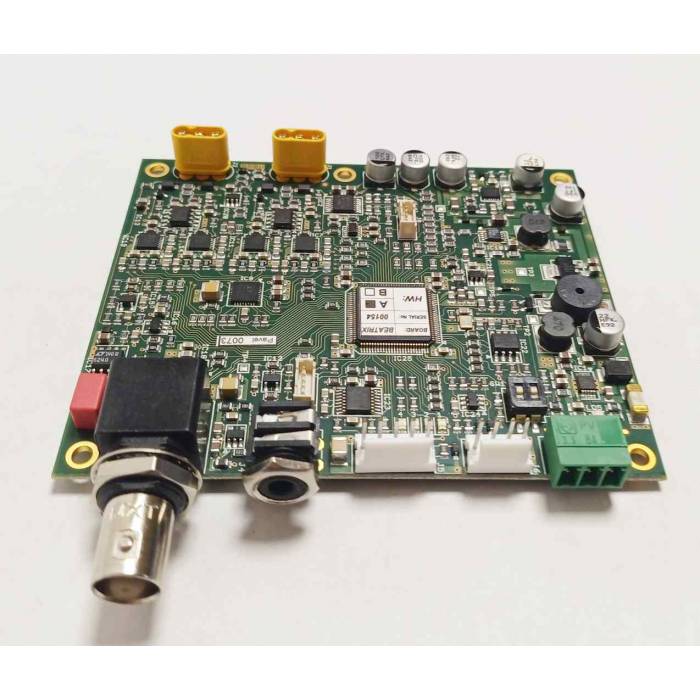

The Beatrix board is used to process the conductivity and temperature signal from the cell electrodes.
Features and Benefits
• Cost-effective solution – replaceable single-use flow cells in a universal holder
• Elimination of dead volume
• Easy flushing with no risk of sample cross-contamination
• Compliance with USP Class VI requirements
• Resistance to corrosive substances • Compatibility with external ECOM detectors (TOY18DAD EX and VEX, TOY20DAD EX and VEX, ECD EX)
• Inspection certificate according to EN 3.1
| Wetted materials | PEEK, saphire glass |
|---|---|
| Body material | Polypropylene |
| Optical cables | SMA 905 (not part of the product) |
