ECDM2100 Conductivity and pH Monitors
ECDM 2100 are conductivity and pH monitors, used for preparative and flash chromatography
Related variants
| Image | PN | Name | Thread | Tube OD | Request quote |
|---|---|---|---|---|---|
|
|
PN
CDPH1600
|
Name
Conductivity and pH Monitor-Without pH cell and sensor, 1/16
|
Thread
UNF 10-32
|
Tube OD
1/16“
|
Actions
|
|
|
PN
CDPH1800
|
Name
Conductivity and pH Monitor-Without pH cell and sensor, 1/8
|
Thread
UNF ¼-28“
|
Tube OD
1/8“
|
Actions
|
|
|
PN
HBIOA002
|
Name

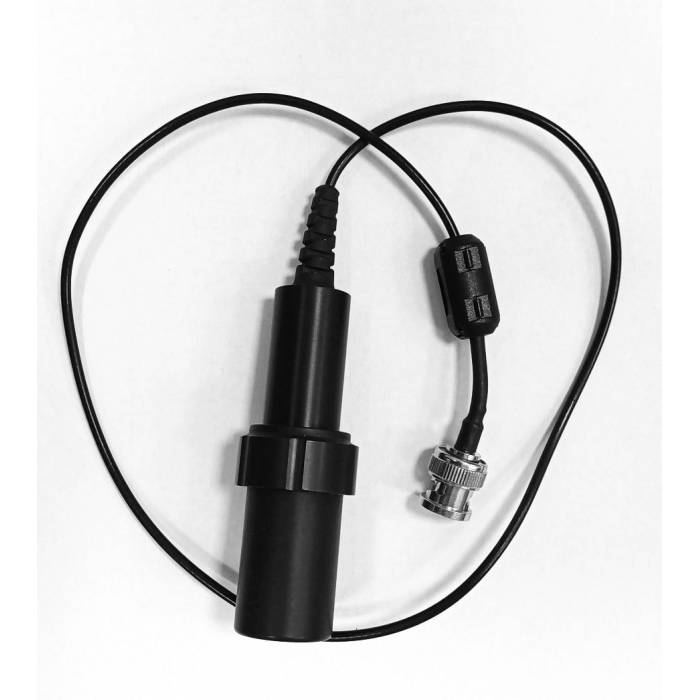

pH sensor AURORA HBIO-A002
|
Thread
---
|
Tube OD
---
|
Actions
|
|
|
PN
S450CD1
|
Name

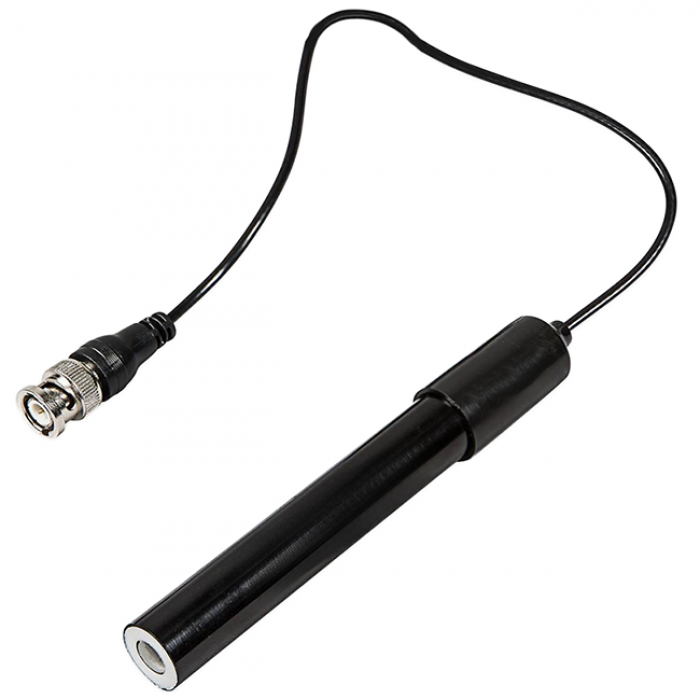

pH sensor SENSOREX double-junction,
|
Thread
---
|
Tube OD
---
|
Actions
|
|
|
PN
238801
|
Name

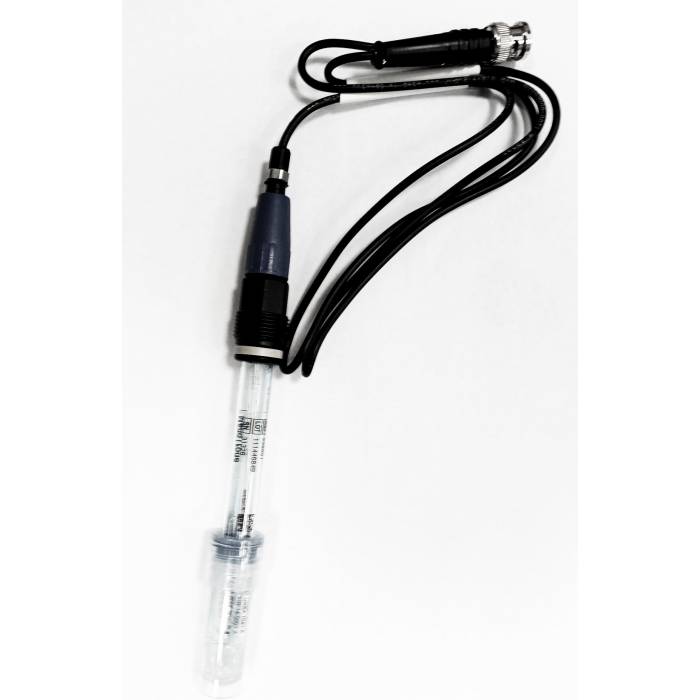

pH sensor Hamilton MecoTrode 120 REF238801
|
Thread
----
|
Tube OD
---
|
Actions
|
|
|
PN
PHAS0800
|
Name

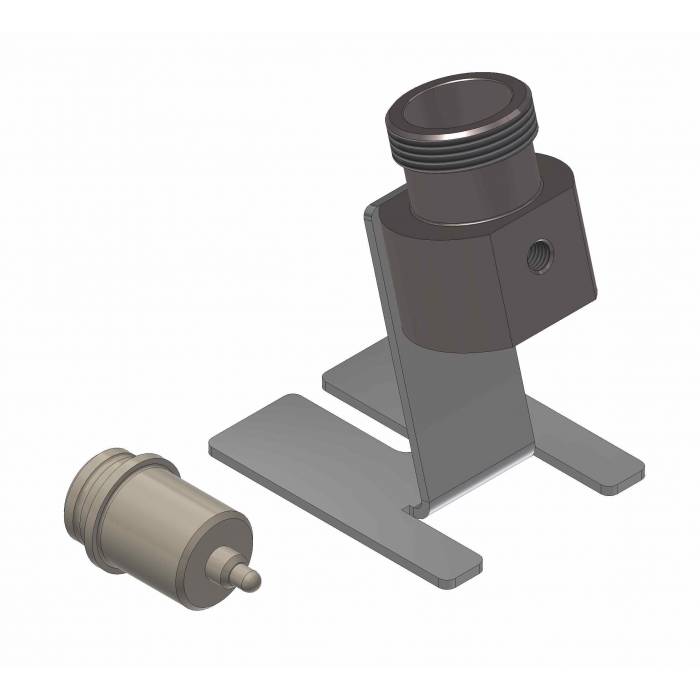

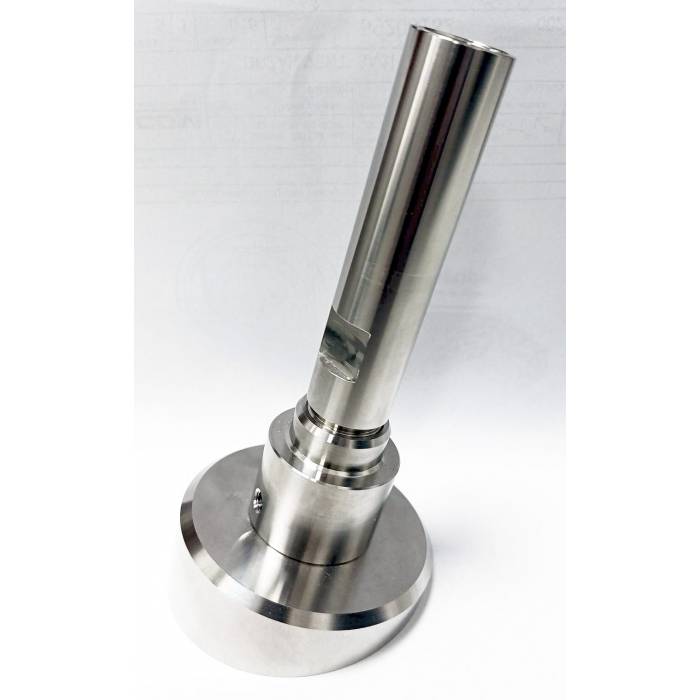

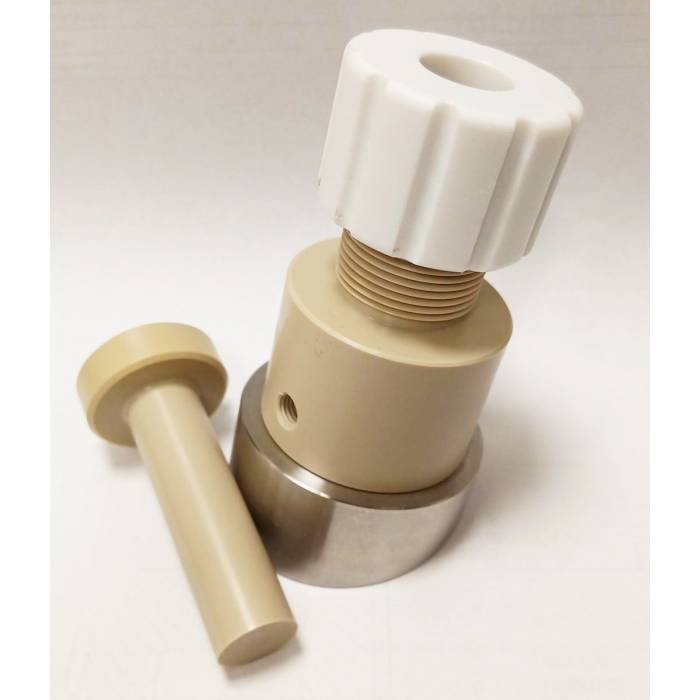

pH Flowcell for Hamilton pH Sensor (Connection with 1/8" or 1/16" Capillaries)
|
Thread
UNF ¼-28“
|
Tube OD
1/8" or 1/16"
|
Actions
|
|
|
PN
PHBP0800
|
Name
pH Flowcell for Sensorex pH Sensor (Connection with 1/8" or 1/16" Capillaries)
|
Thread
UNF ¼-28“
|
Tube OD
1/8" or 1/16"
|
Actions
|
|
|
PN
PHCS0800
|
Name
pH Flowcell for Aurora pH Sensor (Connection with 1/8" or 1/16" Capillaries)
|
Thread
UNF ¼-28“
|
Tube OD
1/8" or 1/16"
|
Actions
|
- Description
- Parameters
- Files to download 1

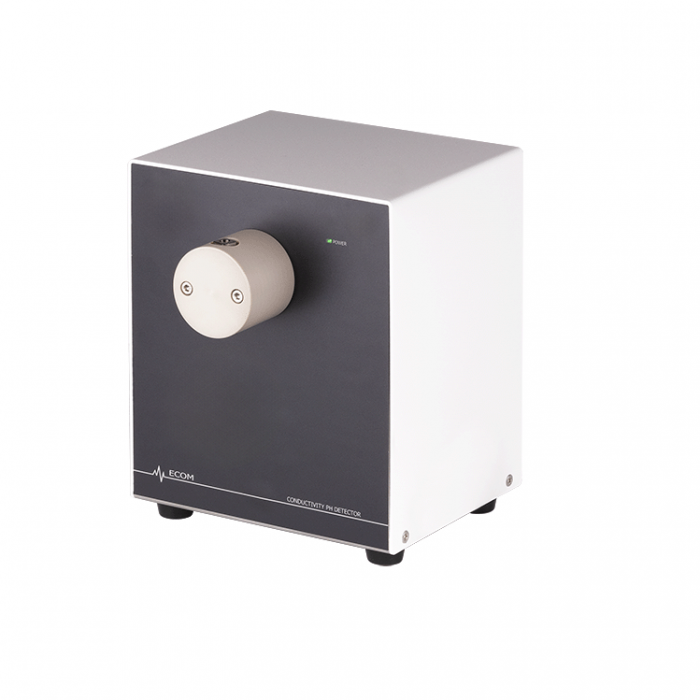

ECDM 2100 are conductivity and pH monitors suited for preparative and flash chromatography. Thanks to the unique ECOM design of the conductivity cell, it radically improves chromatography process monitoring.
The monitor cell had been developed for high-pressure applications, which means it can be used in CaptureSMB applications. These applications utilize a twin-column periodic countercurrent (PCC) process used for the continuous purification of monoclonal antibodies.

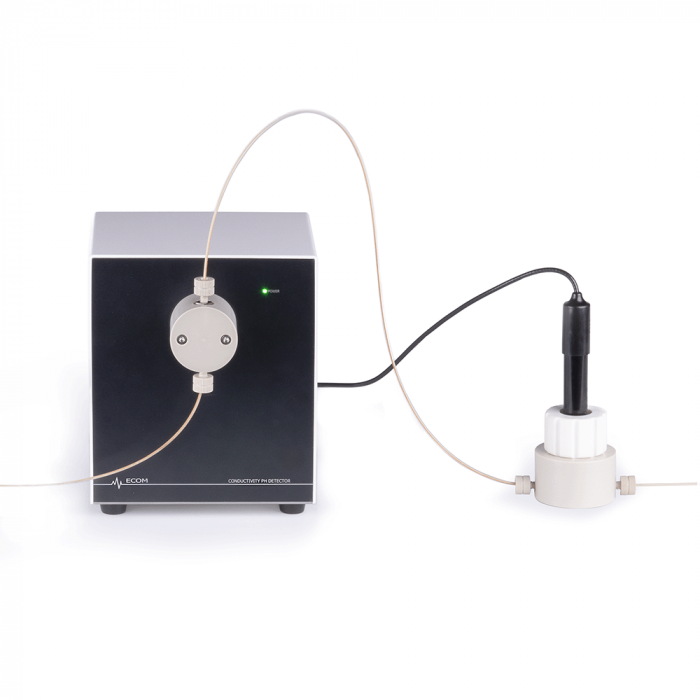

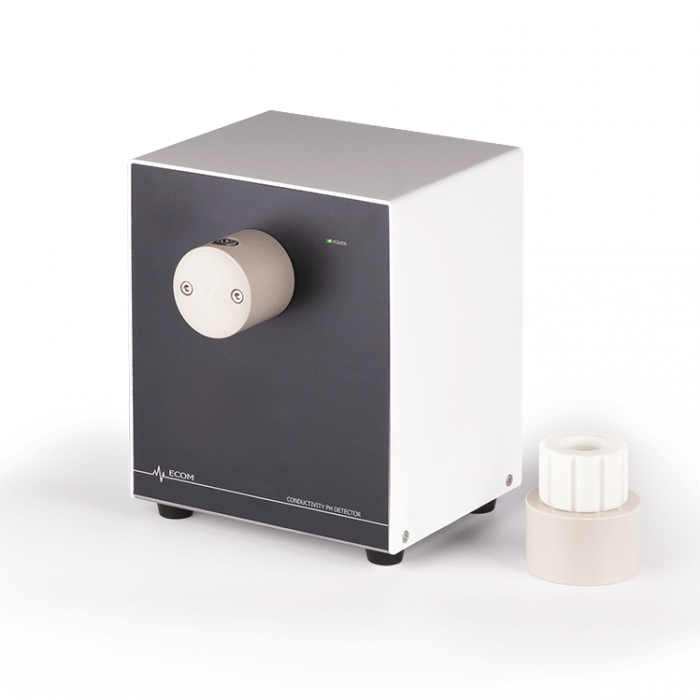

The unit is controlled by a printed board, which measures the conductivity of liquid passing through both the cell and the pH value.To measure pH, it is necessary to order a suitable pH probe and flow cell. The pH flow cell is connected in series downstream of the conductivity detector. The flow cell accessories include capillaries and fittings for both 1/16" and 1/8" versions.
Main features and benefits
- High-pressure conductivity cell up to 17 MPa (for 1/16” version)
- Simple conductivity calibration
- PH cell (choose the cell for the used PH sensor)
- Compact size
- Powered by 12 – 24 V DC
- Sophisticated diagnostic software
| Conductivity Monitoring | 0.01 – 300.0 mS/cm |
|---|---|
| Operating pressure | 0 – 17 MPa (0 – 2465.6 psi; 0 – 170.0 bar) |

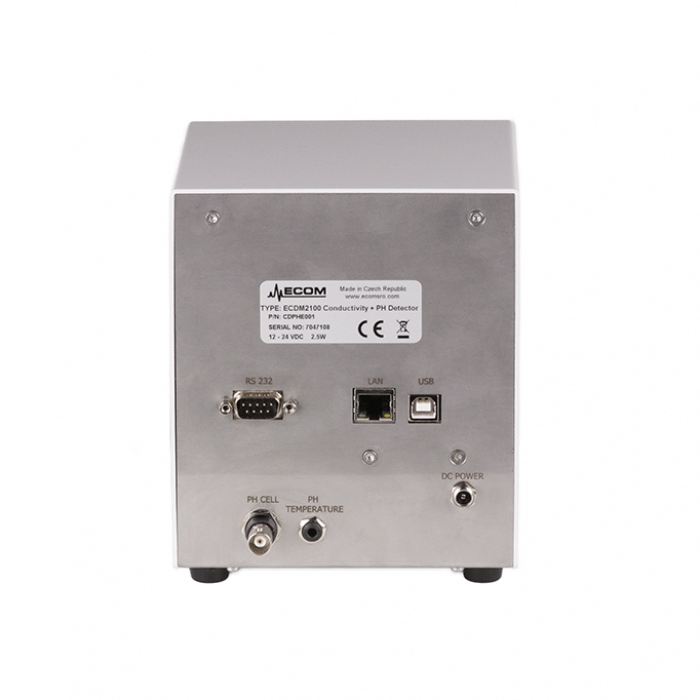

| Communication | RS232 |
| Ethernet (LAN) | |
| USB | |
| Flow rate | Conductivity monitor-0.01 – 200 mL/min |
| pH reading ranges | 0.0-14.0 pH |
| Wetted materials | Titanium and PEEK (conductivity monitor) |
| Communication | RS232,Ethernet (LAN),USB |
| Power supply | 12 - 24 V DC |
| Power input | 2.5 W |
| Cell connecting | Tubing with OD 1/16″, thread UNF 10-32 , tubing with OD 1/8″, thread UNF 1/4-28″ |
| Dimensions W x H x D | 140 x 168 x 165 mm (5.51” x 6.61” x 6.46”) |
| Weight | 1.31 kg (2.89 lb) |
| Filename | Type |
|---|---|
| Info-ECDM2100_monitor-en | pdf (240,46 KB) |

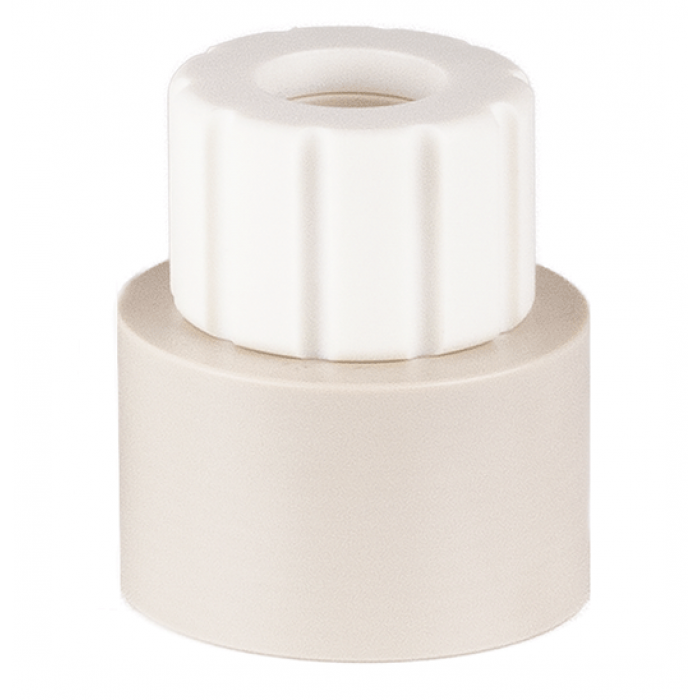

pH Flow Cells
