pH Flow Cells
PH Cells, are used for ECOM Conductivity and pH monitors.
| Image | PN | Name | Thread | Tube OD | Request quote |
|---|---|---|---|---|---|
|
|
PN
PHAS0800
|
Name
pH Flowcell for Hamilton pH Sensor (Connection with 1/8" or 1/16" Capillaries)
|
Thread
UNF ¼-28“
|
Tube OD
1/8" or 1/16"
|
Actions
|
|
|
PN
PHBP0800
|
Name
pH Flowcell for Sensorex pH Sensor (Connection with 1/8" or 1/16" Capillaries)
|
Thread
UNF ¼-28“
|
Tube OD
1/8" or 1/16"
|
Actions
|
|
|
PN
PHCS0800
|
Name
pH Flowcell for Aurora pH Sensor (Connection with 1/8" or 1/16" Capillaries)
|
Thread
UNF ¼-28“
|
Tube OD
1/8" or 1/16"
|
Actions
|
- Description
- Parameters

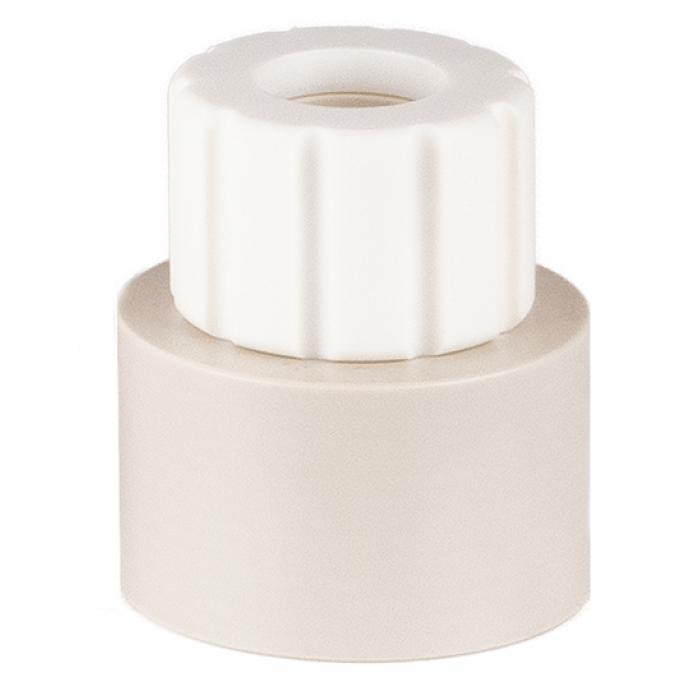

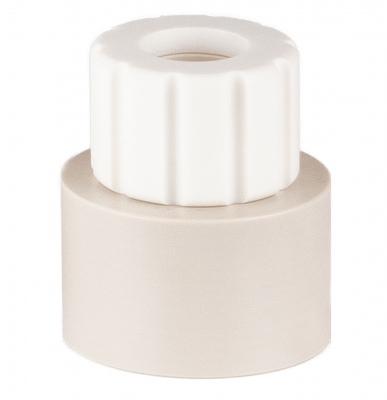

ECOM PH Cells are used for ECOM Conductivity and pH monitors. ECOM pH flow cells are intended for such instrumental techniques and methods as HPLC, FIA, and IEF. The cells can also be used in applications where the pH is to be monitored in chemical systems. The cell has a total internal volume of 50 microliters and is made of chemically resistant, FDA-certified PEEK material.
The internal shapes and overall internal concept inside the pH cell are designed to maintain a smooth flow of liquid to prevent cross-contamination, poor flushing of the cell, or a build-up of impurities. A 3.1 inspection certificate can be delivered with the cell.
| Material | Body PEEK, plug PBT |
|---|---|
| Wetted materials | PEEK |
| Maximum temperature | 200 °C (392 F) |
| Maximum operating pressure | 0.4 MPa, 60 psi |
| Internal surface of pH cell | Ra < 0.4 |
| Internal volume | 50 µl |
| Dimensions (diameter x height) | 50 mm (1.96 in), 60 mm (2.36 in) |
| Weight | 0.1 kg (3.52 lb) |
ECOM is a global supplier of scientific and laboratory instruments for liquid chromatography. The company was established in October 1991 and it is focused on research, development, and manufacturing of scientific and laboratory equipment for liquid chromatography. Our innovative R&D and dynamic processes allow us to quickly react on customer’s needs and to propose customised products and solutions. ECOM’s focus on high quality products and responsive service supports high performance of its customers.
