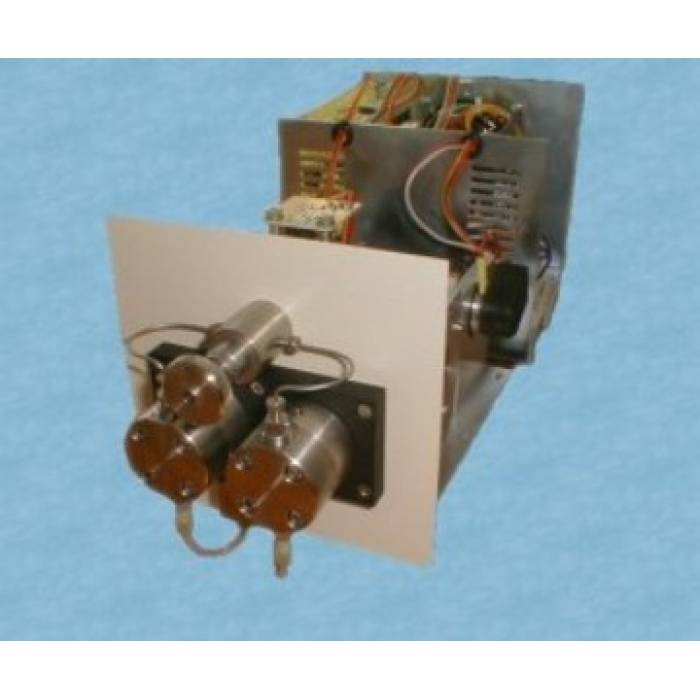

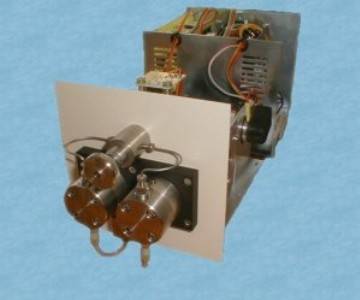

Preparative pump VRS 100
0,5 - 100 ml/min isocratic built in unit with external controlling
- Description
- Parameters
is derived from type ALPHA 100 with two pump pistons connected parallel. Flow-rates ranging is from 0,5 to 100 ml/min and maximum operating pressure of 15 MPa. is derived from type ALPHA 100 with two pump pistons connected parallel. Flow-rates ranging is from 0,5 to 100 ml/min and maximum operating pressure of 15 MPa. The pump is designed as built-in unit with separate mechanical and electronic parts.
The unit is equipped with the following:
- Electronic safeguard of maximum operating pressure
- Back-flushing of pistons
- External flow rate control (using voltage)
| Maximum operating pressure | 15 MPa |
|---|---|
| Flow rate setting | 0,5 - 100 ml/min |
| Power input | 100 VA |
| Weight | 12 kg |
| Upper pressure limit (MPa) | 15 MPa |
| Power requirements | 230/115 ± 10 % VAC, 50/60 Hz |
| Material of pump heads | stainless steel |
| Method of setting | using DC voltage 0-10 V |
| Precision of set flow rate | ± 2 % |
| Dimensions of mechanic part (W x H x D) | 160 x 150 x 190 mm |
| Dimensions of electronic part (W x H x D) | 170 x 160 x 175 mm |
