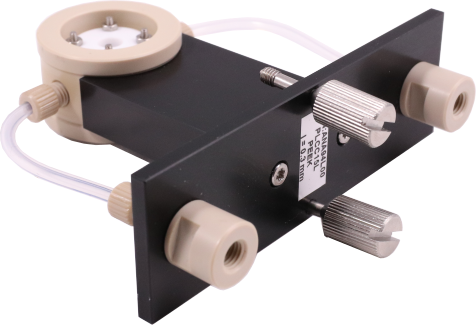

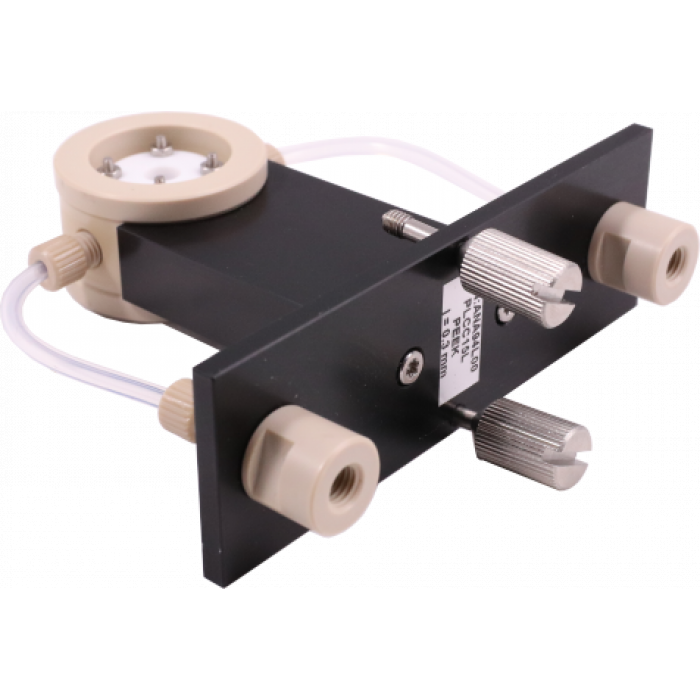

Preparative cell in bracket PLCC15L PEEK
l=0.3mm; tubing with OD 1/8" and thread 1/4" - 28
For detectors TOY18DAD-H, TOY18DAD-L, TOY14DAD, and FLASH14DAD
Manufacturer
ECOM spol. s r.o.
Part number
ANA94L0X
- Description
- Parameters
Preparative cell in bracket PLCC 15 PEEK has a unique design with an optical length of 0.3 mm. Thanks to the construction of the bypass, it prevents the formation of bubbles. It is designed for preparative or flash applications and it is possible to connect it using tubing with OD 1/8" and thread 1/4"-28 with flat bottom. Internal volume of preparative cell is 40 µl. Maximum flow rate is 500 ml/min.
If you are looking for a different cells parameters and materials , see our website or contact us. We are keen to design cell according your needs.
| Volume/optical path length | 40 µl/0.3 mm |
|---|---|
| Wetted materials | PEEK, quartz, FEP |
| Body material | PEEK |
| Maximal flow rate | 500 ml/min |
| Connecting thread | 1⁄4”-28 |
| Maximum operating pressure | 2 MPa (290 psi) |
