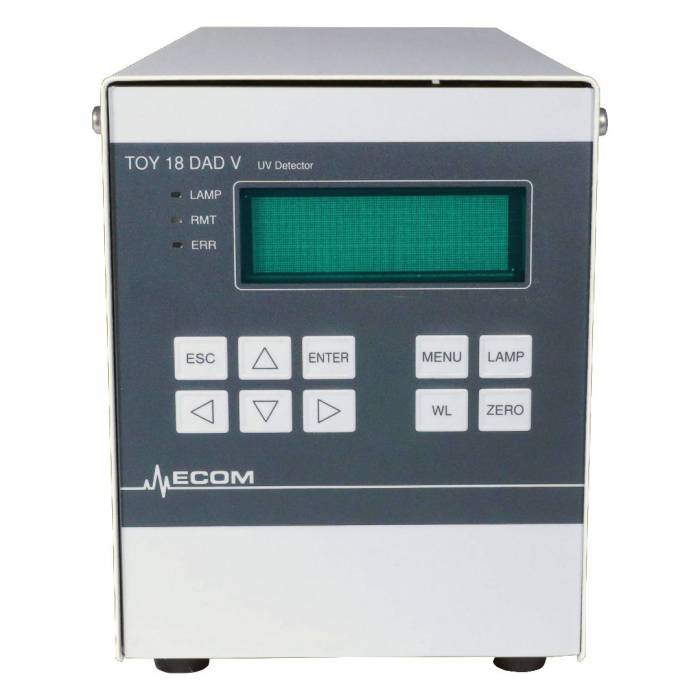

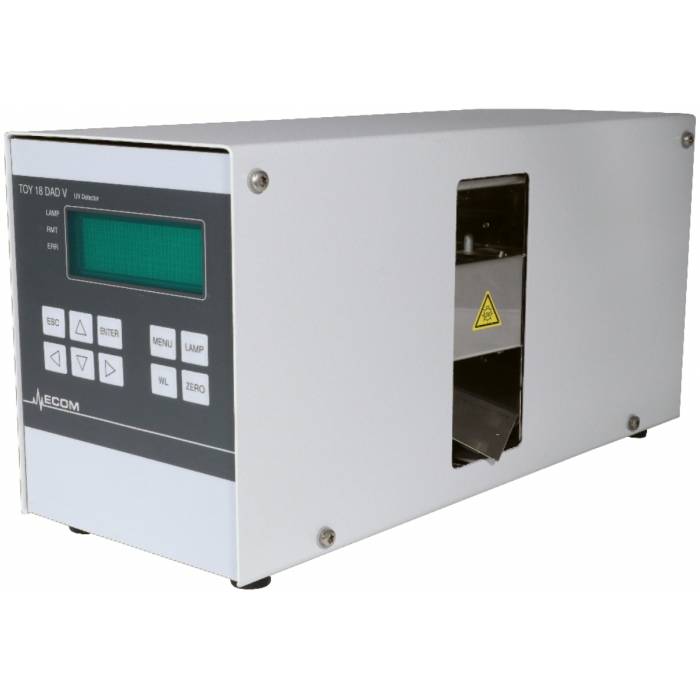

TOYDAD V Detector Series (internal cell)
TOYDAD V Detectors are produced in many versions according wavelengths range, number of measuring channels and scanning possibility.
Related variants
| Image | PN | Type | Wavelength range [nm] | Number of Channels | Scanning | Lamps | CCD elements | Request quote |
|---|---|---|---|---|---|---|---|---|
|
|
PN
TOYV0011
|
Type
TOY18DAD400 V Two Channel UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOYV0021
|
Type
TOY18DAD400 V Four channel UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOYV0032
|
Type
TOY18DAD400 V Scanning UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOYV0111
|
Type
TOY18DAD600 V Two Channel UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0121
|
Type
TOY18DAD600 V Four Channel UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0132
|
Type
TOY18DAD600 V Scanning UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0311
|
Type
TOY18DAD800 V Two channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0321
|
Type
TOY18DAD800 V Four channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0331
|
Type
TOY18DAD800 V Scanning channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T20V0311
|
Type
TOY20DAD800 V Two channel UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T20V0321
|
Type
TOY20DAD800 V Four channel UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T20V0331
|
Type
TOY20DAD800 V Scanning UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0221
|
Type
TOY18FIX V Dual UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
2 Fix wavelengths
|
Scanning
No
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYV0211
|
Type
TOY18FIX V Single UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
1 Fix wavelength
|
Scanning
No
|
Lamps
D2
|
CCD elements
256
|
Actions
|
- Description
- Parameters
- Files to download 3
Four wavelength ranges (200 - 400; 200 - 600; 200 - 800 and 190 - 800 nm) are offered in versions which measure on two or four wavelengths with informative scan on query or in Scanning version which measures at four wavelengths simultaneously or sends a scan at a speed up to 20 Hz which allows the creation of a 3D picture. More wavelengths or scans are used in liquid chromatography to verify the purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
The unit is supplied with an AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in). It powers the lamps and controls the unit. Thanks to new board features it allows sending a scan of spectra with high resolution and speeds up to 20 Hz depending on the baud rate.
The most important features of TOYDAD V Detectors :

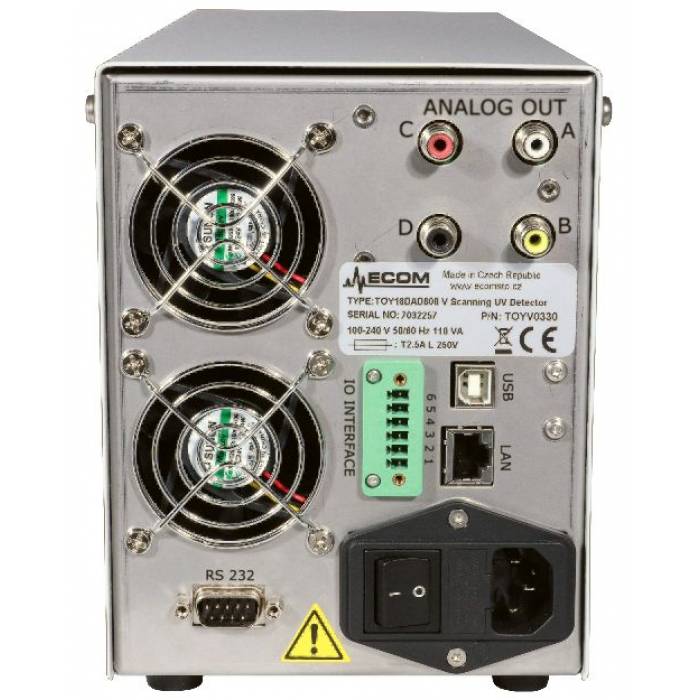

• communication using LAN, USB and RS232
• four analog outputes
• IO interface
• built-in lamp working hours counter
• easy flow cell connection
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software
| Accuracy of adjustment | ± 1 nm |
|---|---|
| Typical spectral half-width | 10 nm |
| Reproducibility | ±0.5 nm |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-6 AU |
| Drift (Test cell, 254nm) | 2 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Analog output | 4x configurable |
| Maximal flow rate | 500 or 3 000 ml/min depending on the cell |
| Communication | RS232,Ethernet (LAN),USB,Remote digital I/O |
| Power supply | 100-240V 50/60Hz |
| Power input | 100VA |
| Materials in contact with mobile phase | FEP; fused silica, stainless steel. PEEK |
| Dimensions W x H x D | 135 x 170 x 340 mm (5.32 x 6.69 x 13.39 in) |
| Weight | 4.4 kg (9.7 lb) |
| Filename | Type |
|---|---|
| Manual-TOY18_20DAD_V_VEX-cz-00.pdf | pdf (2,15 MB) |
| Manual-TOY18_20DAD_V_VEX-en-00.pdf | pdf (2,08 MB) |
| Info-TOY18DAD_V_detectors_PFC-en-02.pdf | pdf (167,49 KB) |
Related products
Deuterium lamp for TOYDAD-L + TOY14 + TOY18
For detectors TOYDAD-L + TOY 14 + T0Y 18
Halogen lamp with cable and connector
For Flash DAD and TOYDAD detectors up to 800nm and for detectors ECD2800 and ECDA2800.

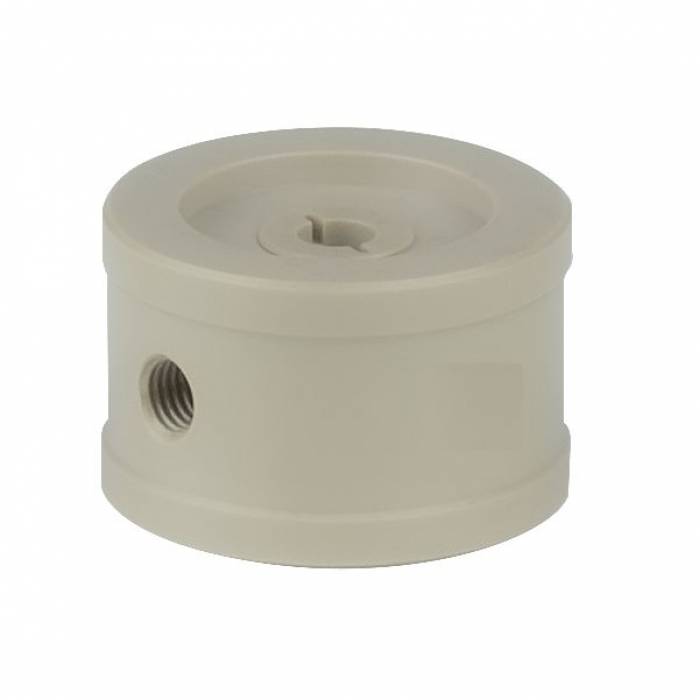

PFC-Basic Series Preparative Cells, PEEK
