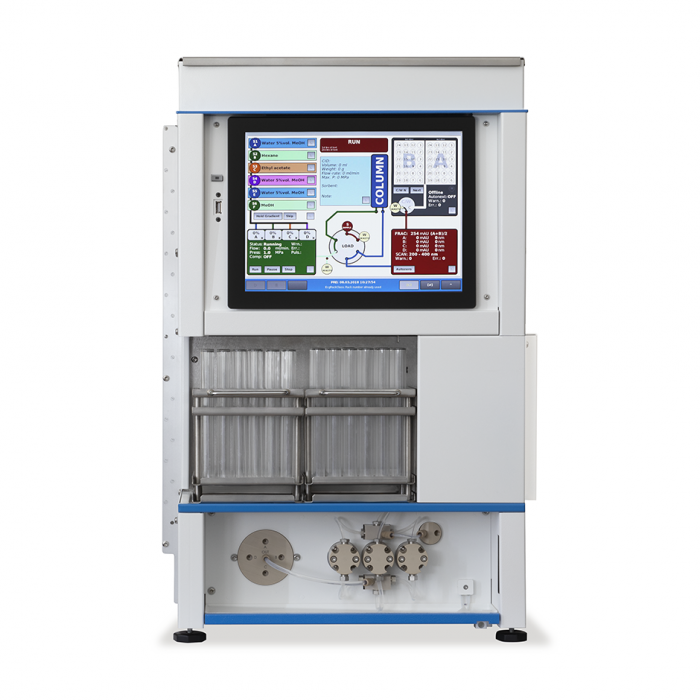

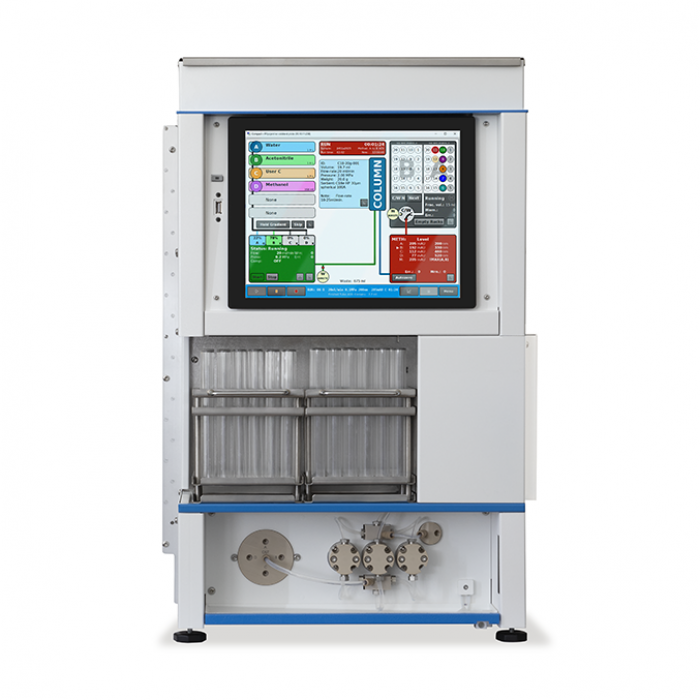

COMPACT FLASH SYSTEM (300 ml/min, TOY18DAD800)
This highly effective, compact flash system contains a UV-VIS DAD detector, a flash gradient pump, and a fraction collector. The system can measure at four wavelengths simultaneously and scan the entire spectrum. Furthermore, 3D data can be displayed. One of the system‘s main advantages is its special pumping system design, which suppresses pulsation. The system is controlled via a built-in PC and touchscreen. This modular solution can also be configured according to customer requirements.
- Description
- Files to download 1
The Detector
It is a UV-VIS diode array detector, which allows measuring absorbance at four wavelengths in the range of 200‑800 nm simultaneously, just as scanning of the whole spectrum. Standardly, there is an assembled PFC cell with an optical path length of 0.3 mm, but other cells are available.
ECF2096 Fraction Collector

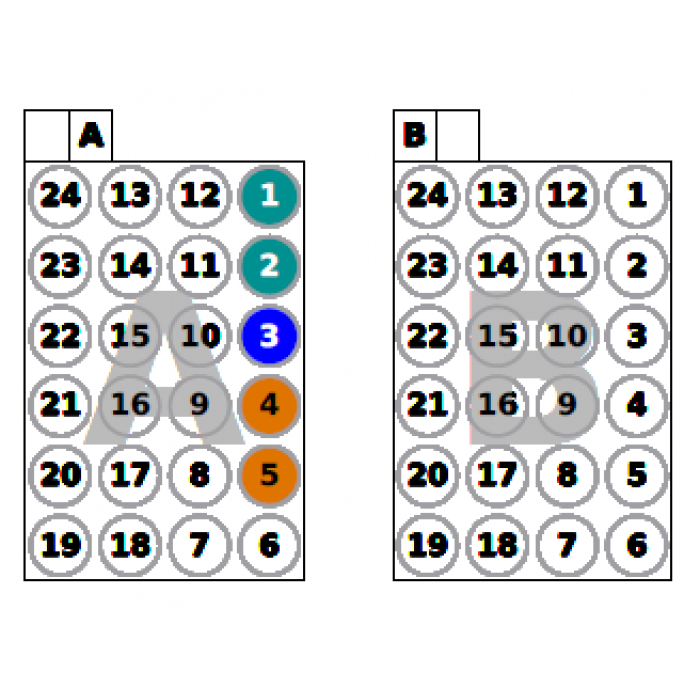

Fractions are collected according to the chosen method, which can be created comfortably using a touch screen. Racks for 8, 21, 40 tubes, 60 ml vials, or 12 funnels.
ECP2303 three-head low-pressure gradient pump
The basic version comes with a two-component low-pressure gradient, while the extended version comes with a four-component low-pressure gradient.

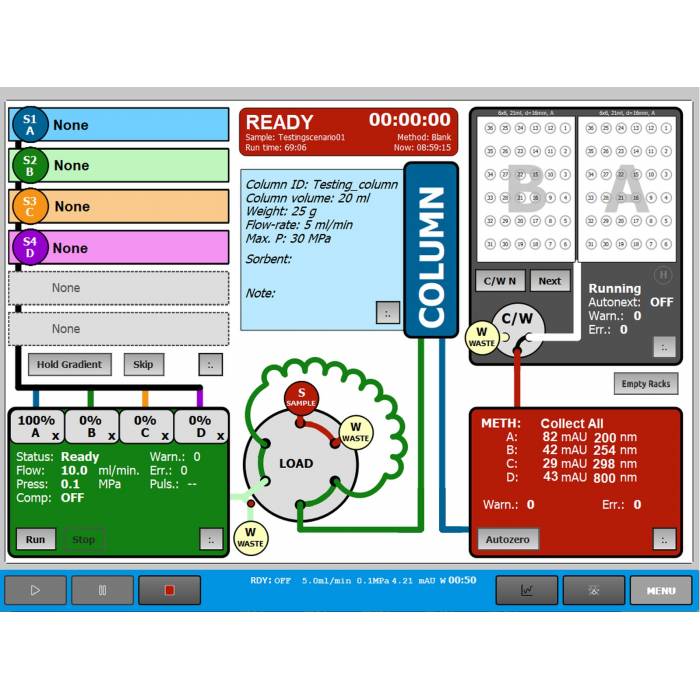

Controlling: System PC information: An industrial PC with a 4-core processor is installed. It runs on the Linux operating system and has a 12.1“ touchscreen with a resolution of 1024 × 786. The QUEEN software controls the gradient, flow rate, wavelengths, fraction collection, etc. The user gains full control with detailed results and the option of remote administration.

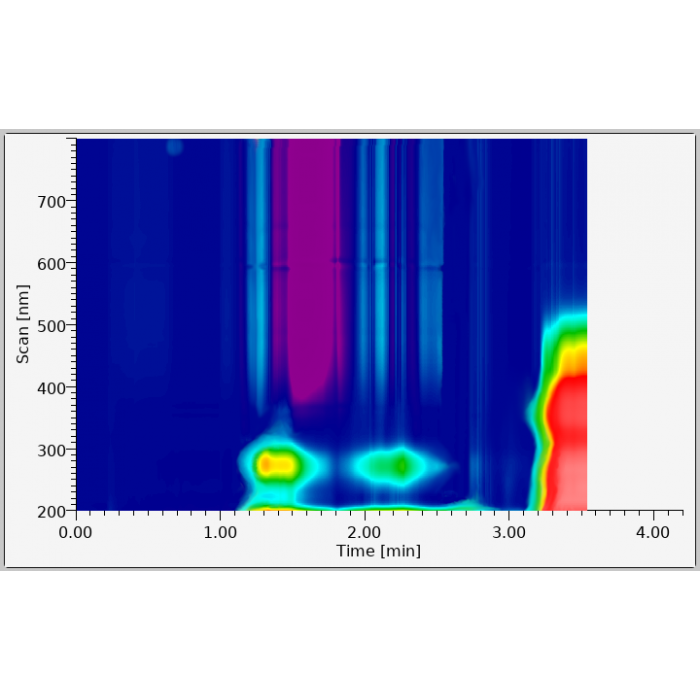

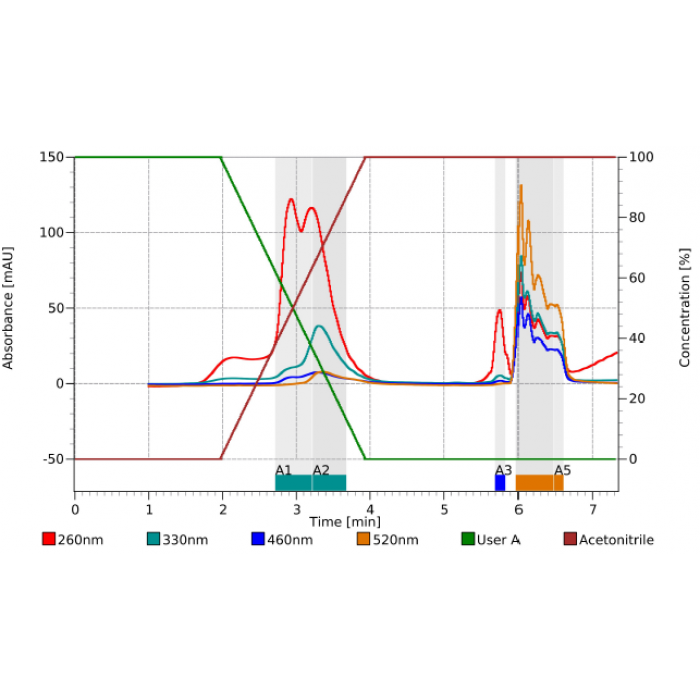

The system offers the possibility of measuring at four wavelengths simultaneously, or scanning through the entire spectrum. Furthermore, there is the option of displaying 3D data.
| COMPACT FLASH SYSTEM | |
| Compatible columns | • Any low-pressure columns suitable for the systems´ maximum pressure and maximum flow rate • This applies to both the reverse phase and normal phase, as well as other sorbent options |
| Pump | 0-300 ml/min / 5 MPa; PEEK heads |
| Low pressure gradient | Basic version: 2-components Extended version: 4-components |
| Detector | 200 – 800 nm, 4 channels + scanning |
| Fraction collector | 8, 21, 40 or 60 ml tubes, or 12 funnels |
| Interface | 3xUSB, 2xLAN, RS232 |
| Power supply | 100 - 240 V AC |
| Power input | 490 W |
| Dimensions | 500 x 678 x 482 mm (20 x 27 x 19”) |
| Wetted materials | PEEK, titanium, FEP |
| Weight | 37 kg (81,58 lb) |
| Filename | Type |
|---|---|
| Info-Piston_Seal_Materials-en | pdf (134,34 KB) |
