AS96 Autosampler
Automatic autosampler for 96 vials, with or without a cooling and heating module 30, 40 MPa or 60 MPa
| Image | PN | Application | Cooling and heating module | Maximum pressure | Request quote |
|---|---|---|---|---|---|
|
|
PN
ASA96000
|
Application
Analytical
|
Cooling and heating module
yes
|
Maximum pressure
60 MPa (8702 psi)
|
Actions
|
|
|
PN
ASA96010
|
Application
Analytical
|
Cooling and heating module
not
|
Maximum pressure
60 MPa (8702 psi)
|
Actions
|
|
|
PN
ASA97010
|
Application
Analytical
|
Cooling and heating module
not
|
Maximum pressure
40 MPa (5801 psi)
|
Actions
|
|
|
PN
ASA97000
|
Application
Analytical
|
Cooling and heating module
yes
|
Maximum pressure
40 MPa (5801 psi)
|
Actions
|
|
|
PN
ASA98000
|
Application
Preparative
|
Cooling and heating module
not
|
Maximum pressure
30 MPa (4351 psi)
|
Actions
|
- Description
- Parameters
- Files to download 1

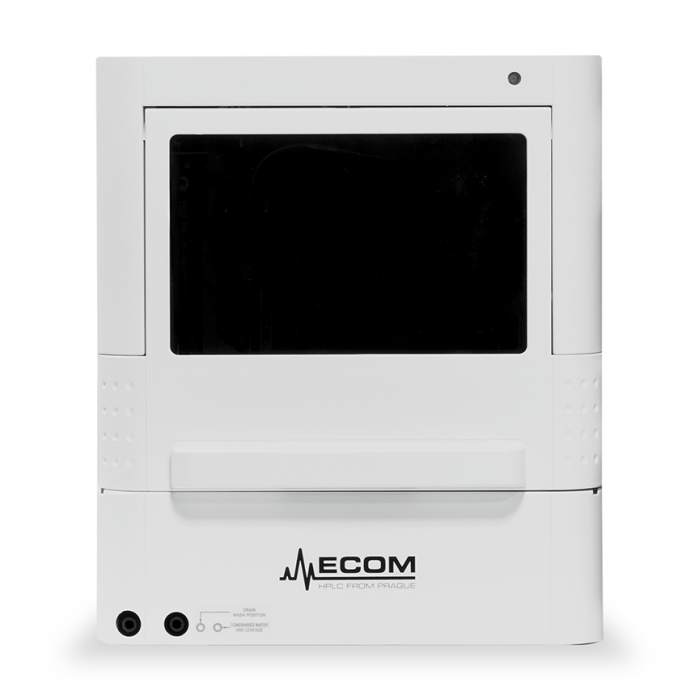

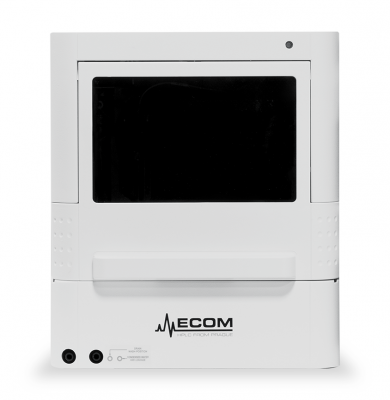

The AS96 is a reliable and precise autosampler with a compact design, ideal for a wide range of HPLC and LC-MS applications. The full version comes with cooling and heating.
AS96 Autosampler is a generic autosampler using state-of-the-art injection technology with fast injection and wash cycles. Efficient, multi-solvent needle wash virtually eliminates carry-over. AS96 enables excellent reagent addition and mix capabilities for derivatization, dilution and internal standard addition. Our Pressure Assisted Sample Aspiration (PASA™) concept avoids sample-syringe contact and air bubbles and has proven its robustness in more than 30,000 autosamplers. A comforting thought if you need a reliable autosampler.
AS96 Autosampler handles well plates and sample vials, either open or sealed. Its compact, stackable design and unrivaled performance make the AS96 the best fit for any analytical system.
Features
• Reagent addition and mix capabilities for derivatization, dilution, internal standard addition
• Optional 6-port solvent selection valve (SVV) for extended selection of reagents for needle wash and reagent addition (option)
• Quick-fit injection valve for fast service
| Parameter | Value |
|---|---|
| Injection modes | Full-loop, Partial loop-fill, µL-pick-up |
| Injection volume | Programmable from 0 µL – 9999 µL; 1 µL increments |
| Injection precision | Full-loop injection ‹ 0.3% RSD; Partial loop-fill ‹ 0.5% RSD; µL -pick-up ‹ 1.0% RSD |
| Sample viscosity | 0.1 – 5 cP |
| Injections per vial/well | Max 9 |
| Syringe volume |
500 µL standard; 250 µL & 1000 µL optional (analytical); 2500 µL standard (preparative) |
|
Needle wash |
1 solvent 5 additional wash solvents |
| Injection cycle time | 60 seconds |
| Valve switching time | 60 msec |
| Wetted parts | SS316, PTFE, TEFZEL, VESPEL, glass, For Bio-kit option: PEEK and coated-steel (needle) instead of SS316 |
| Carry-over | ‹ 0.05% with standard wash Typically ‹ 0.01% with extra wash |
| Sample capacity | Microtiter plates: 2; Vials: 2x 48 (1.5 mL) or 2x 12 (10 mL) - optional |
| Maximum vial/MTP height | 47 mm |
| Heating/cooling combination | Minimum 4 °C; Maximum 40 °C (only for ASA96000 & ASA97000) |
| Frequency | 50/60 Hz |
| AC Voltage | 95 – 240 V |
| Communication | RS232,Ethernet (LAN) |
|---|---|
| Syringe volume | 500 µL standard; 250, 1000 and 2500 µL optional |
| Wetted materials | SS316, PTFE, TEFZEL, VESPEL, glass, For Bio-kit option: PEEK and coated-steel (needle) instead of SS316 |
| Loop volumes | Programmable from 0 µL – 9999 µL; 1 µL increments |
| Sample Capacity | Microtiter plates: 2; Vials: 2x 48 (1.5 mL) or 2x 12 (10 mL) - optional |
| Injection volume | Programmable from 0 µL – 9999 µL 1 µL increments |
| Injection Precision | Full-loop injection ‹ 0.3% RSD; Partial loop-fill ‹ 0.5% RSD; µL -pick-up ‹ 1.0% RSD |
| Filename | Type |
|---|---|
| Info-Autosampler-AS96-en | pdf (161,08 KB) |
