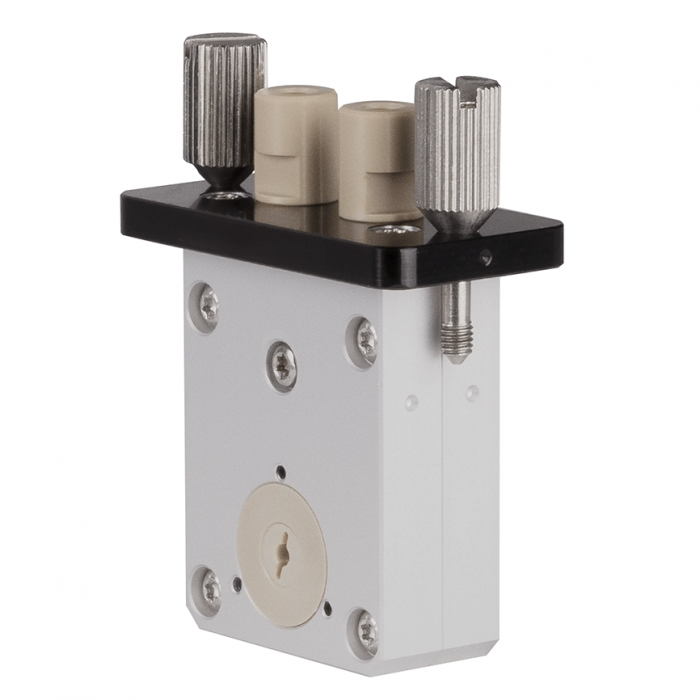

Analytical cell AC05
l=5mm; tubing with OD 1/16” and thread UNF10-32
For the ECD detectors series. Optical path length 5 mm.
- Description
- Parameters
- Files to download 1
This analytical cell is designed for use in the ECD detector series. Cell internal volume is 8 µl and its optical path is 5 mm.
Also available in configurations made of certified bio-inert materials.
| Volume/optical path length | 8 µl / 5 mm |
|---|---|
| Material | PEEK, stainless steel, fused silica |
| Casing dimensions | 54 x 28 x 77 mm |
| Maximal flow rate | 10 ml/min |
| Connecting thread | UNF10-32 |
| Maximum operating pressure | 5 MPa |
| Weight | 108 g |
| Filename | Type |
|---|---|
| Info-ECD2000_flow_cells-en-03.pdf | pdf (273,84 KB) |
